iRest Eagleton dimensions and technical data

The iRest Eagleton was created in collaboration between iRest and the Korean technology brand Bodyfriend. A double massage mechanism and independent leg massagers bring together the experience of both makers. Exact dimensions and technical data are below.

Will the chair fit where I planned it?

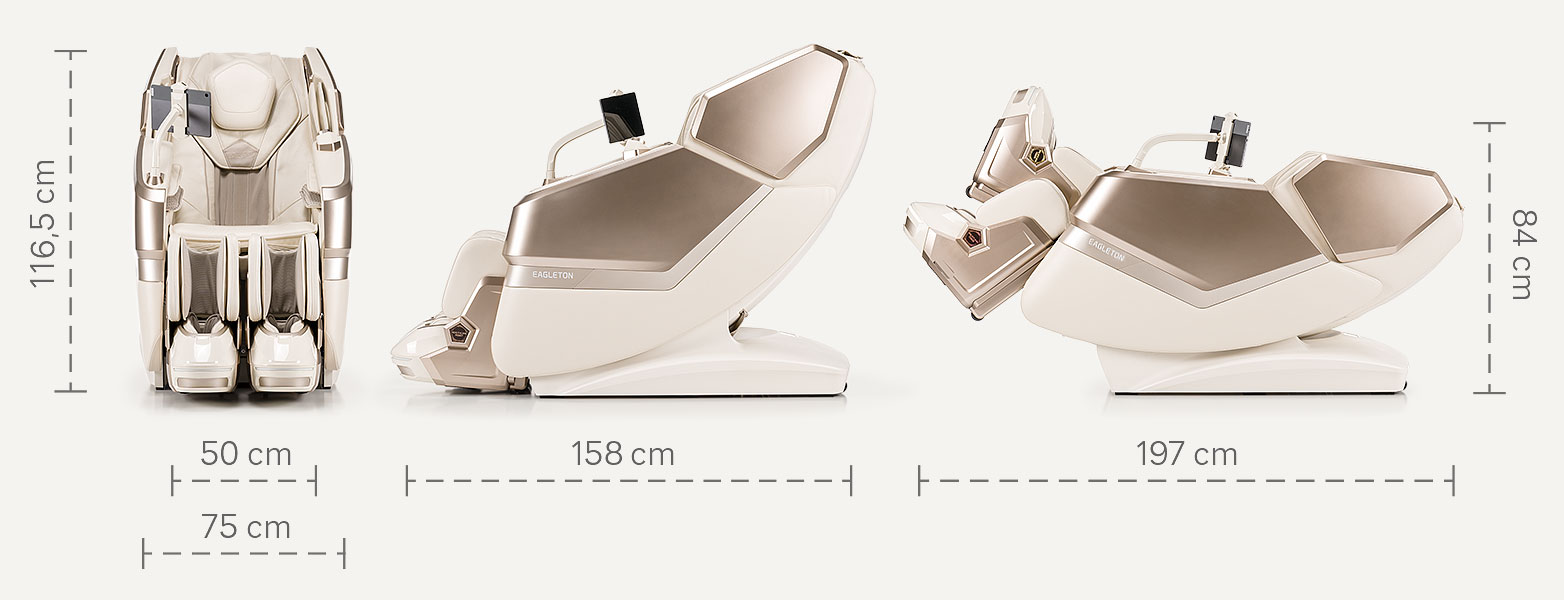

The drawing above shows the exact dimensions of the iRest Eagleton. In addition:

• the seat is 50 cm wide, 45 cm deep and 52 cm high;
• the foot massager is 29 cm deep;
• the legroom with the calf massager is 12 cm wide;
• the forearm massager is 52 cm long;
• the footrest extends by a further 16 cm;
• minimum doorway width for delivery — 80 cm;
• free space behind the chair — at least 30 cm;
• free space in front of the chair — at least 60 cm;
• massage range 135 cm — the length given by the SL rail (from the neck, through the buttocks, to the thighs);

Technical parameters

• massage system — XD FLEX + 3D;
• number of airbags — 30;
• number of massage balls — 6;
• noise level — below 60 dB;
• rated power — 280 W;

Worth knowing

• 32 automatic programs;
• 7 massage techniques;
• 5 levels of massage arm strength;
• 3 levels of massage arm width;
• 5 levels of massage speed;
• 5 levels of airbag massage strength;
• 5 levels of foot roller speed;
• 2 zero-gravity positions;

Full description: iRest Eagleton.
